Specification

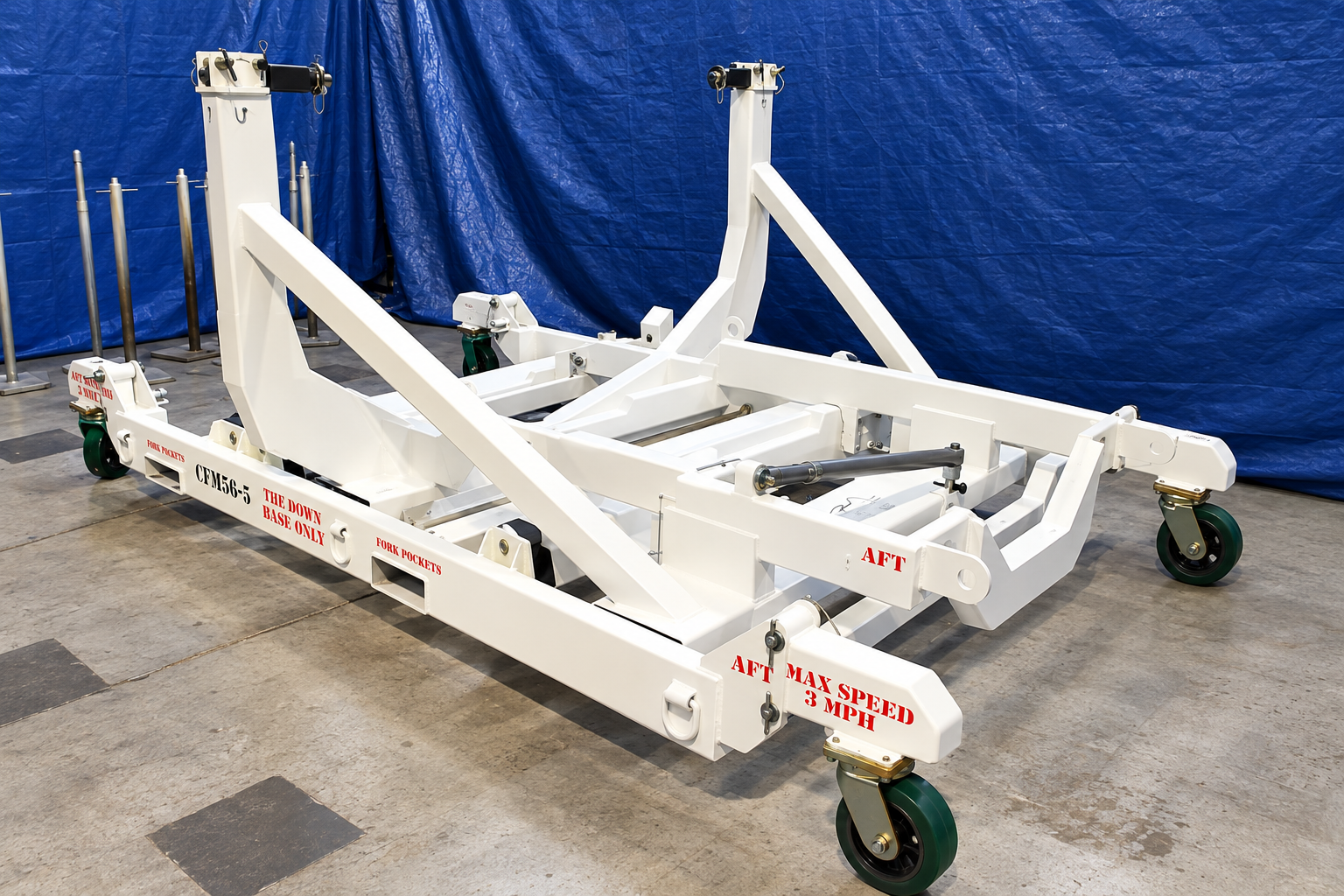

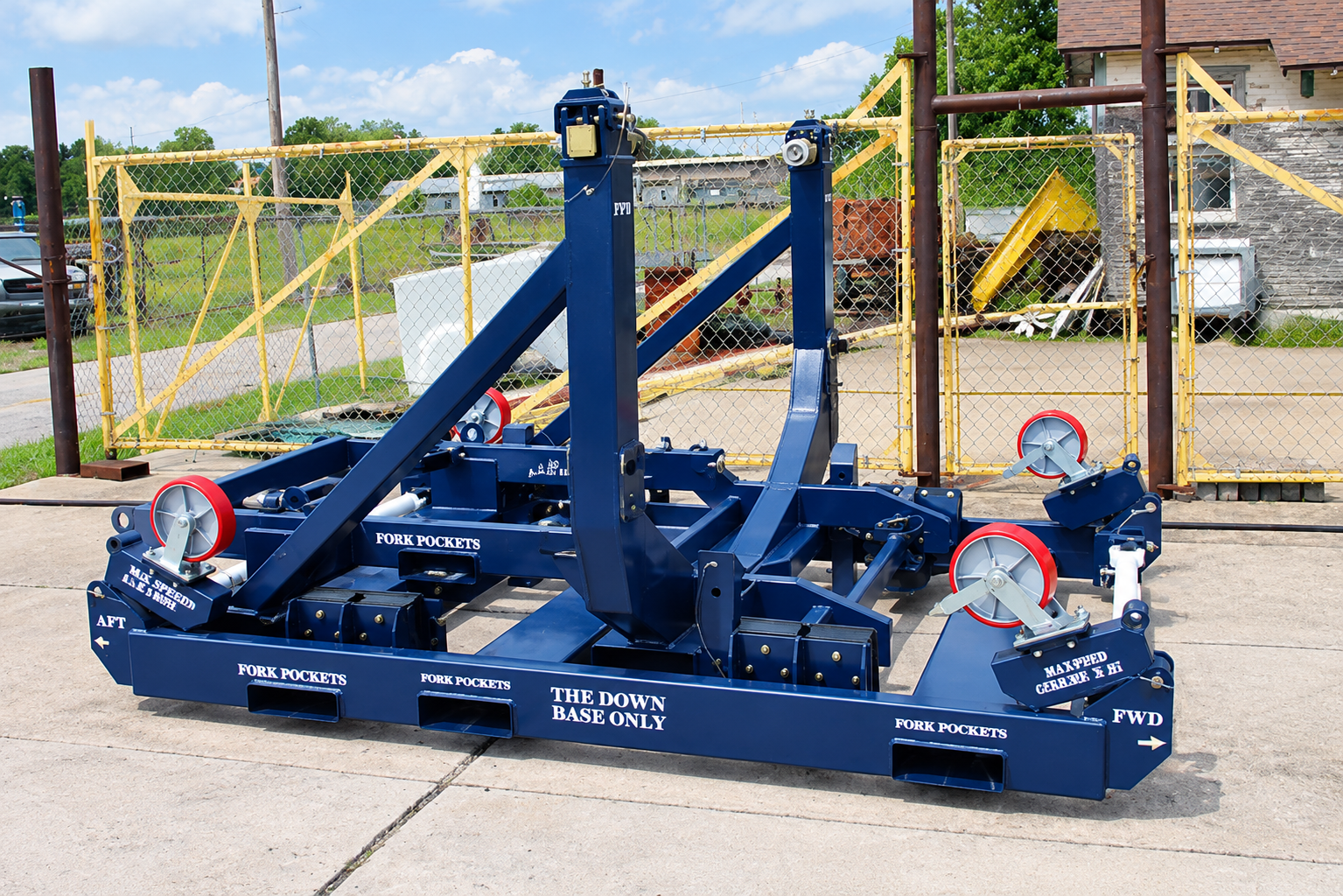

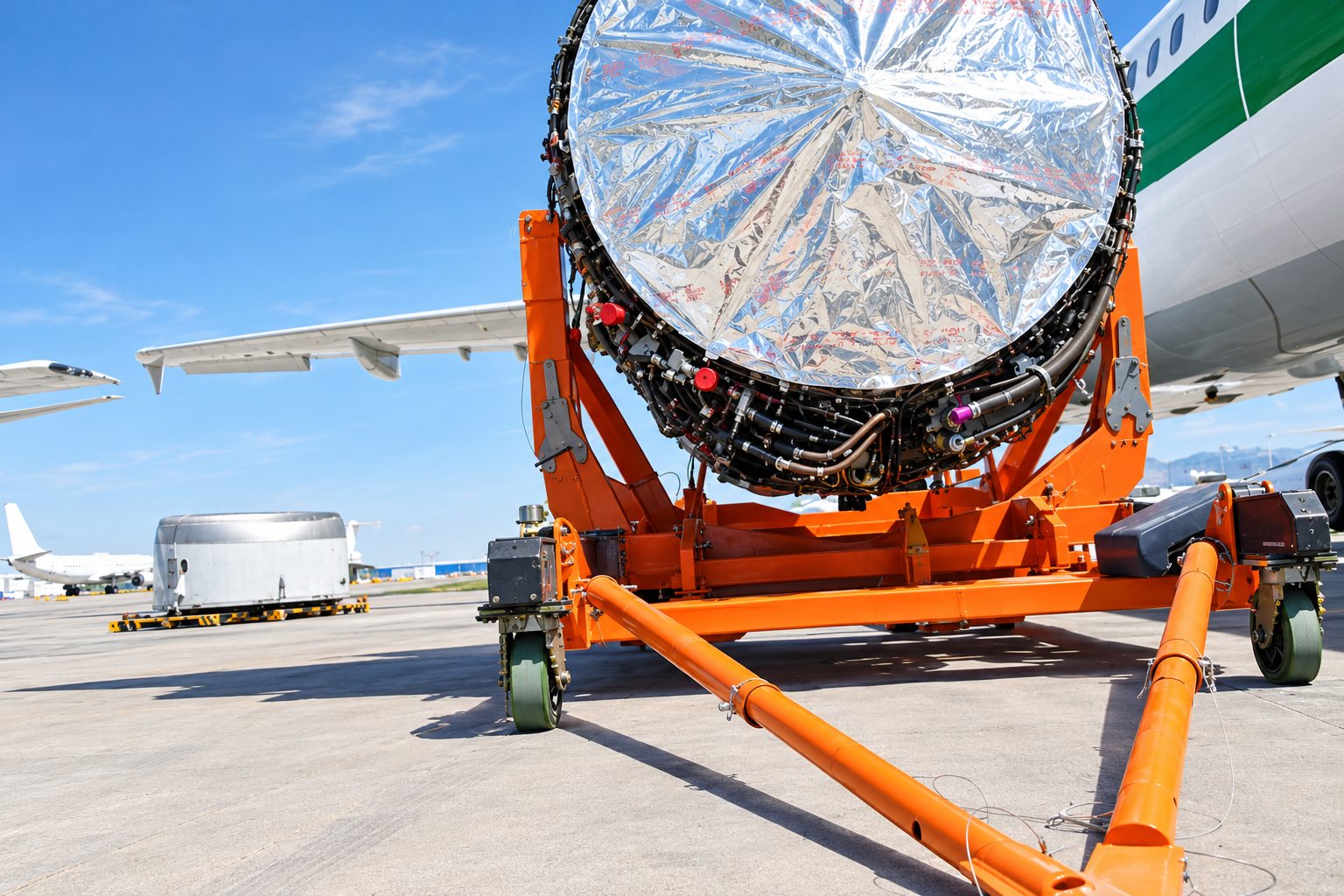

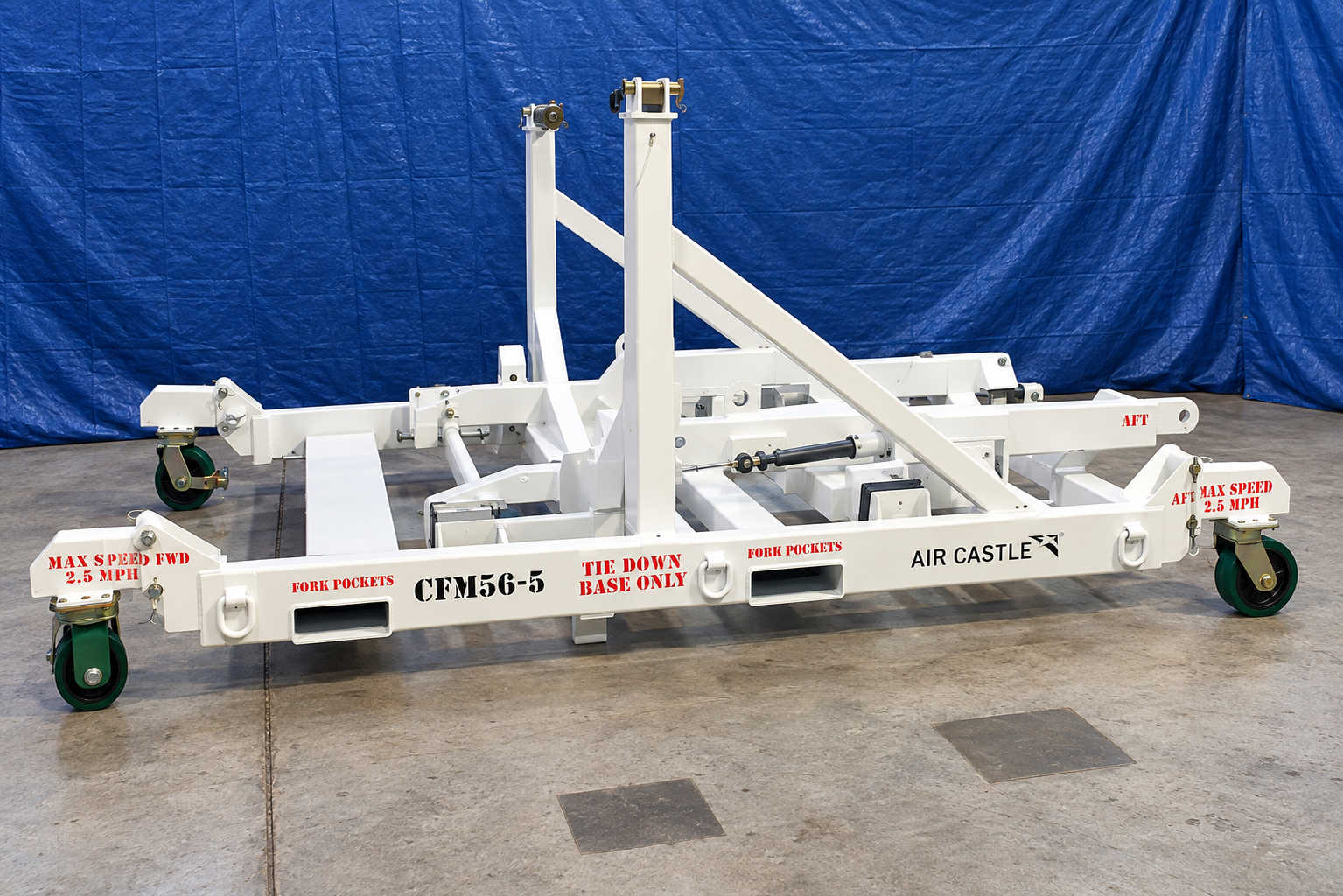

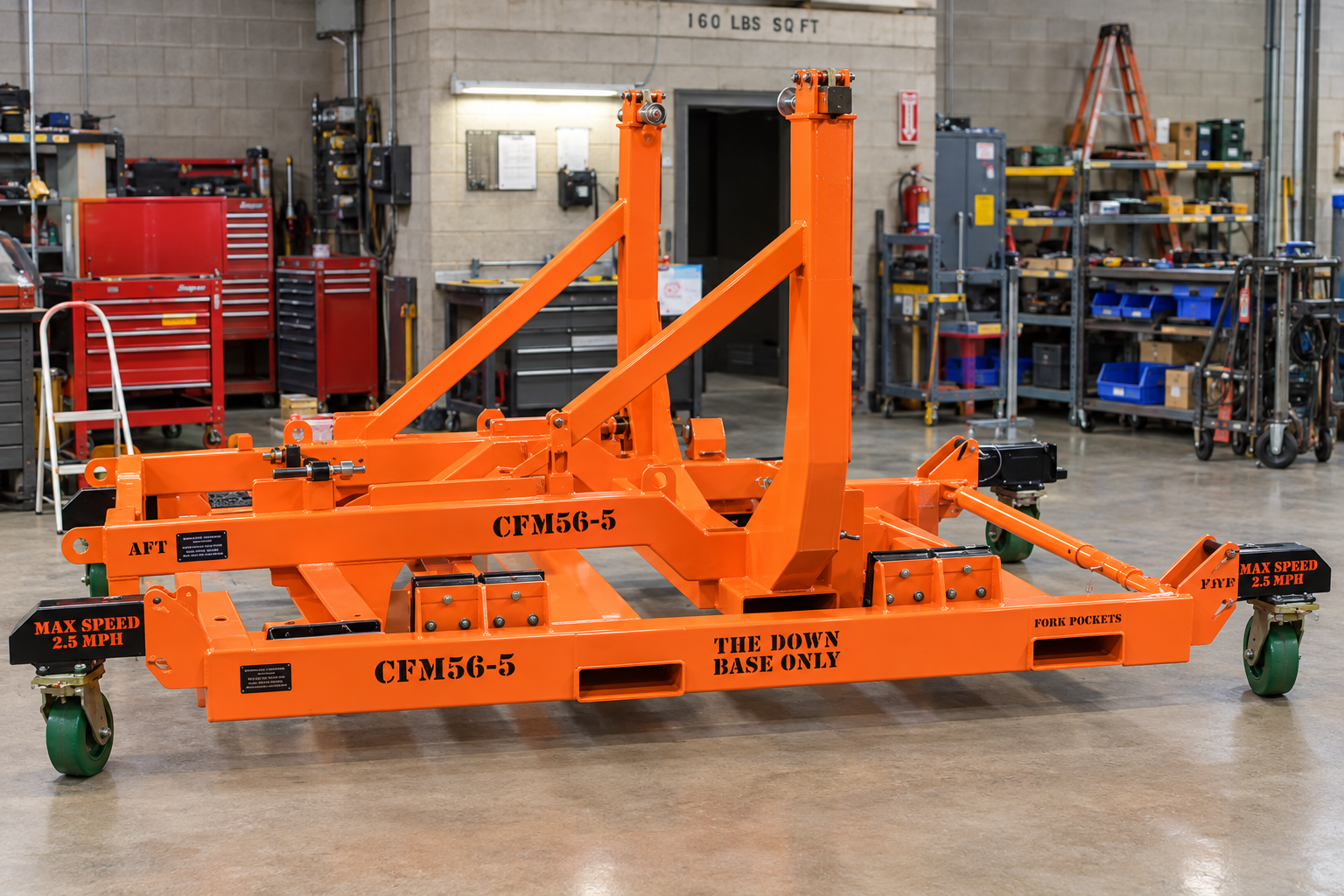

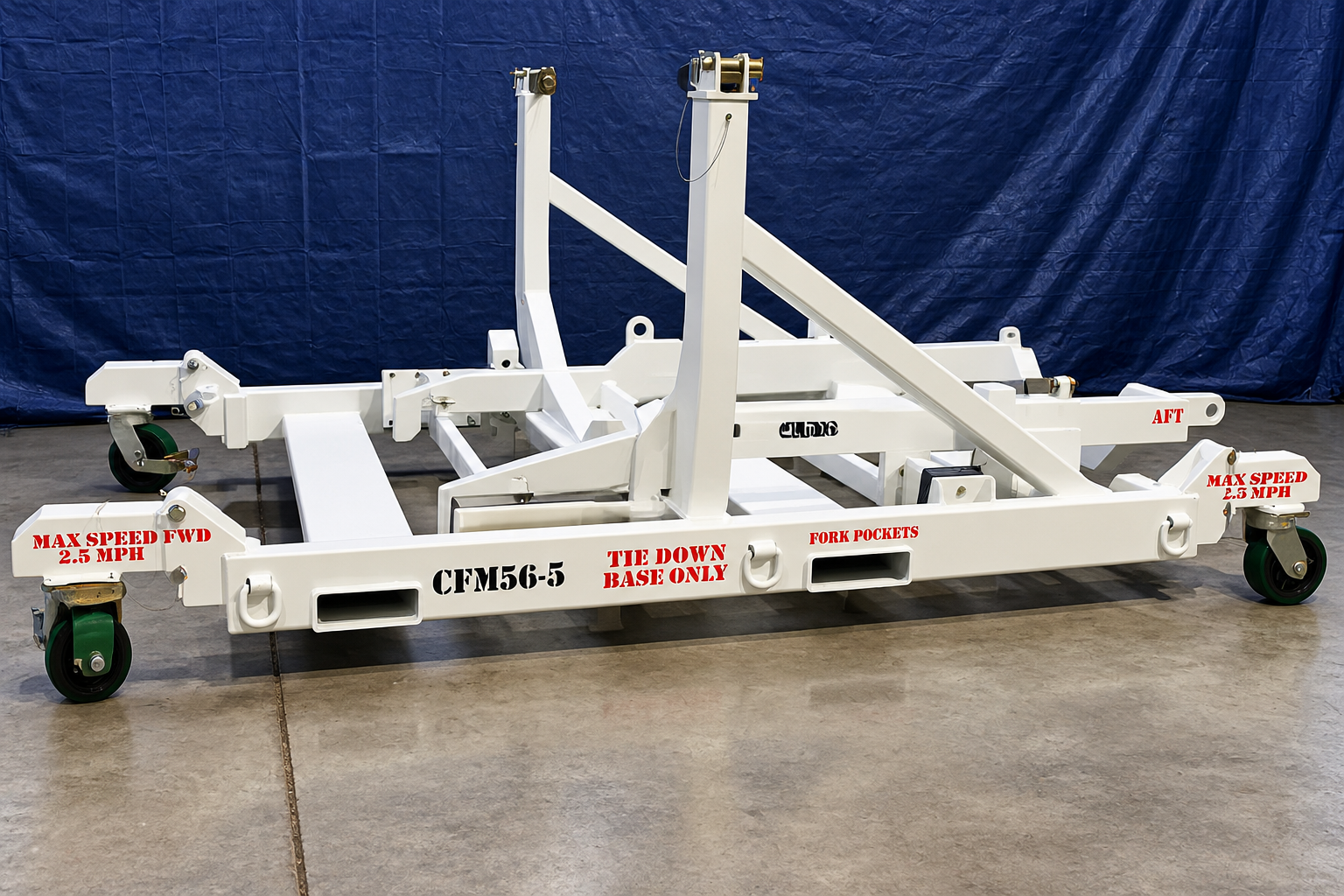

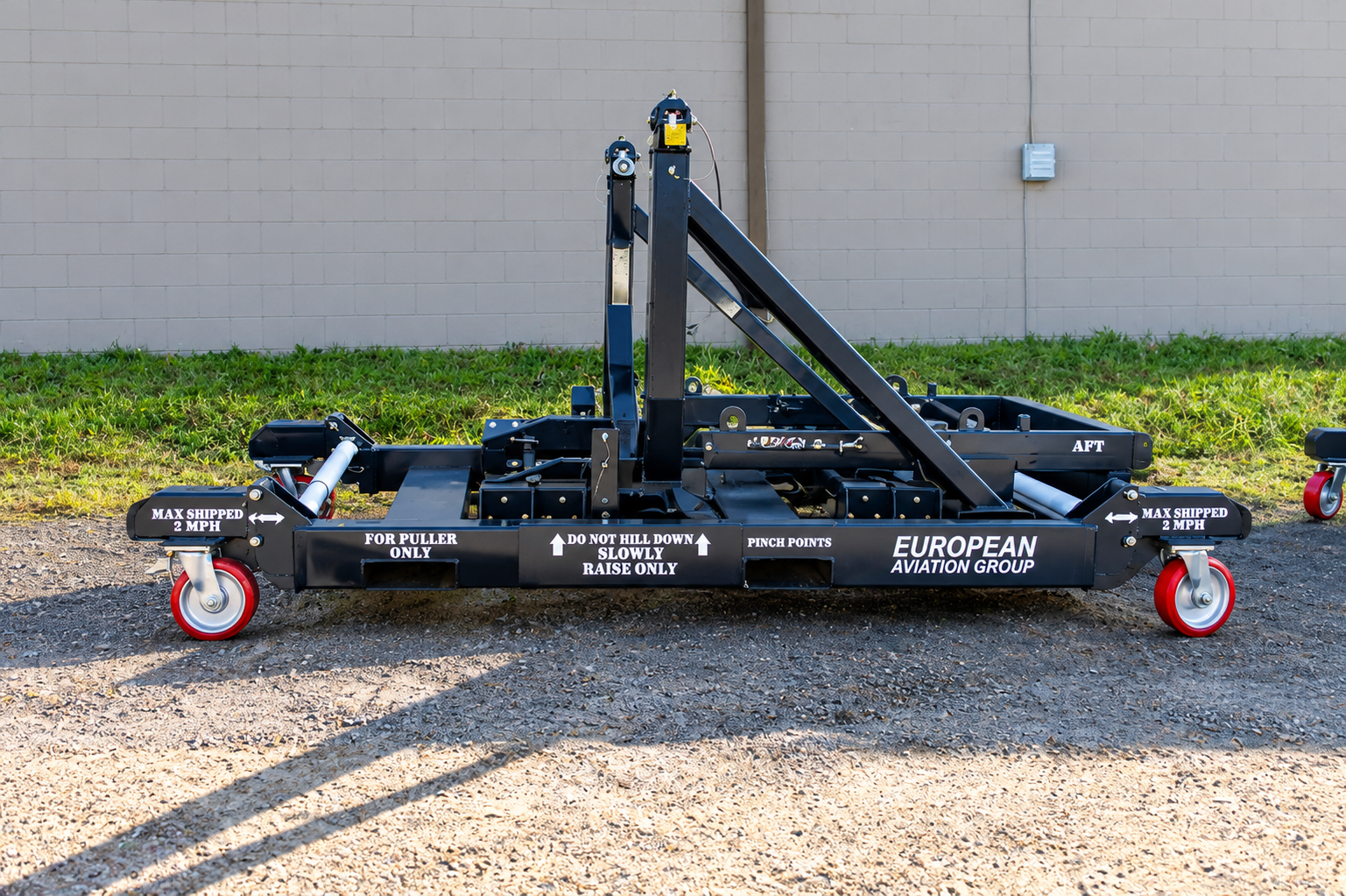

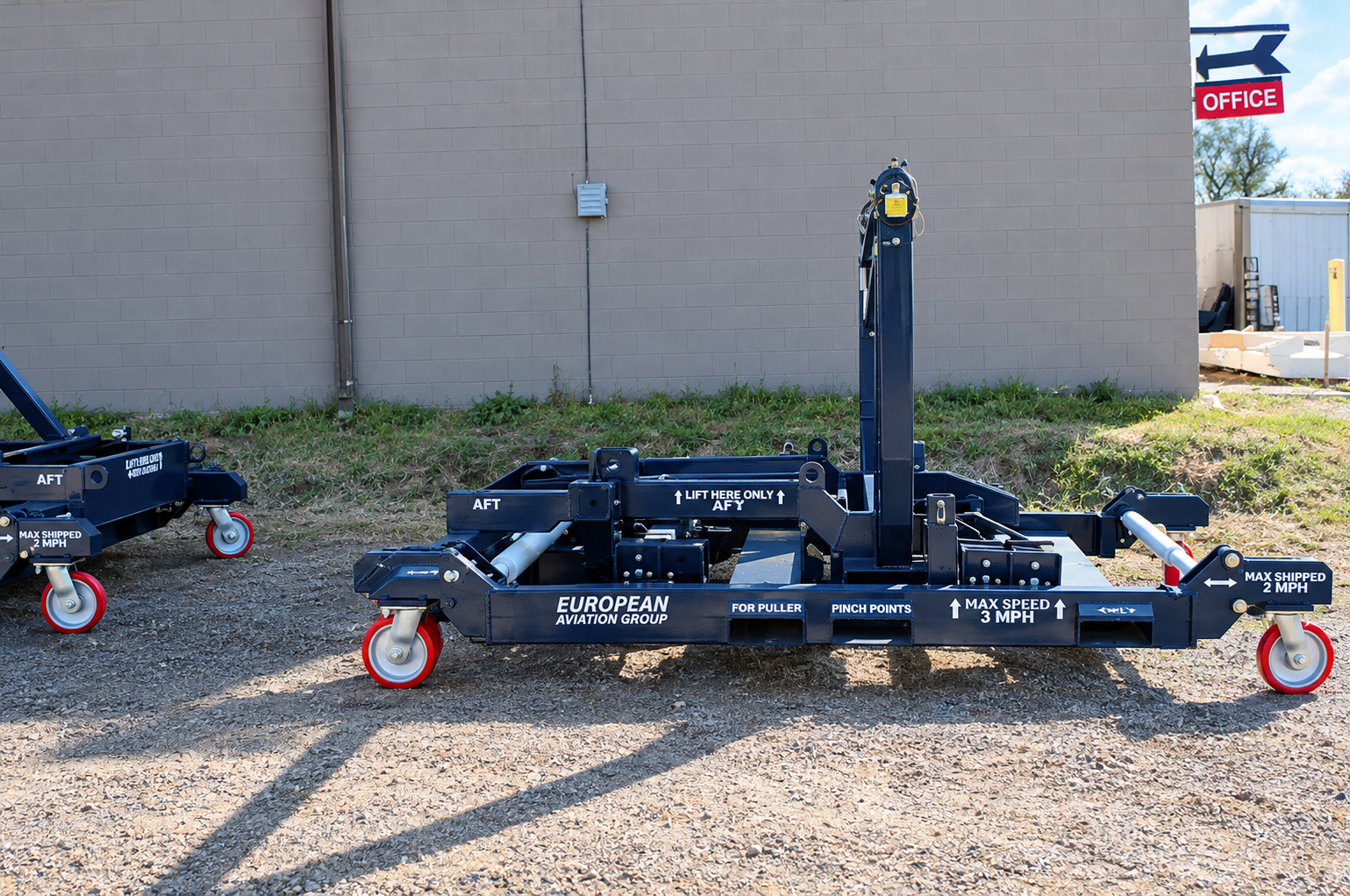

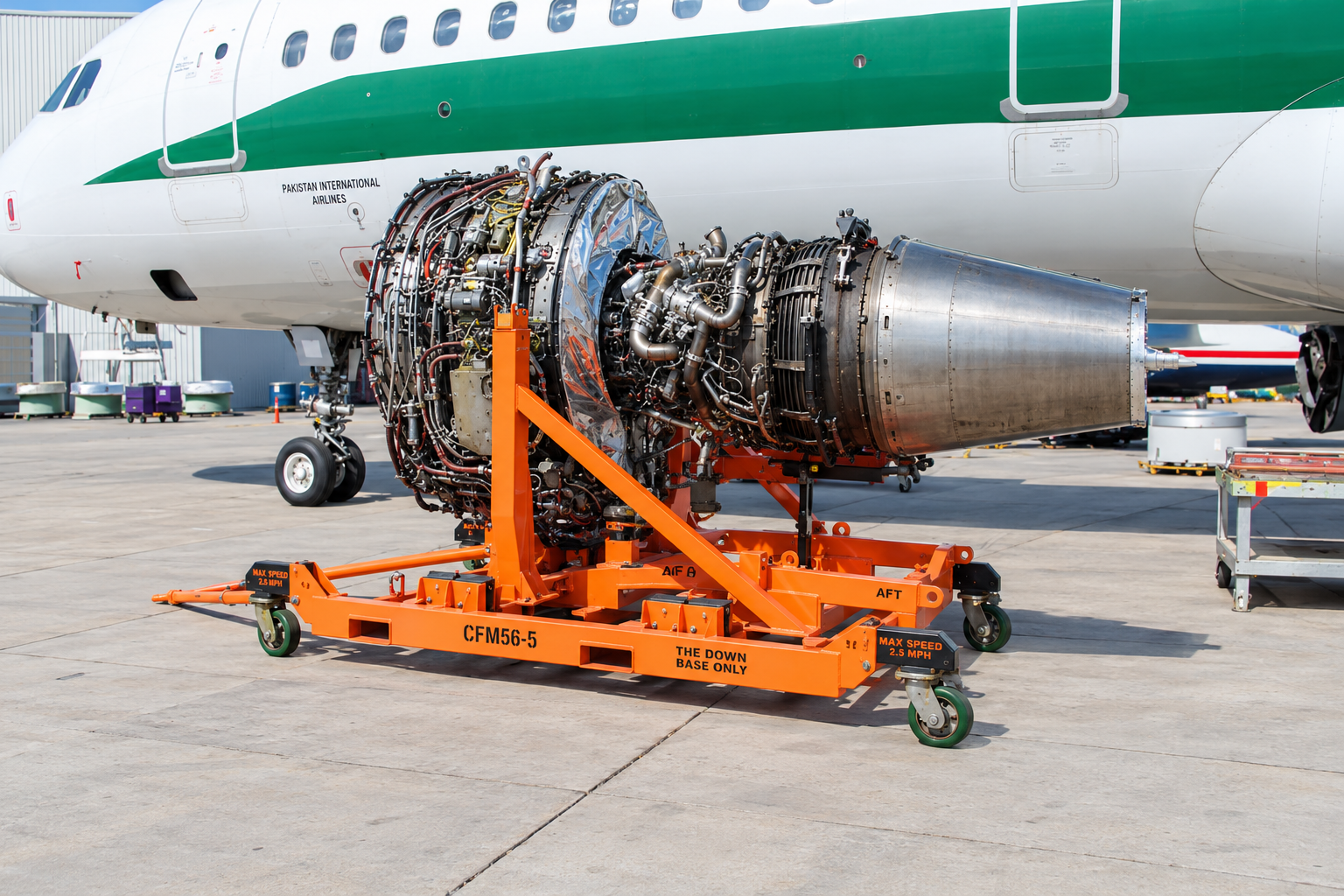

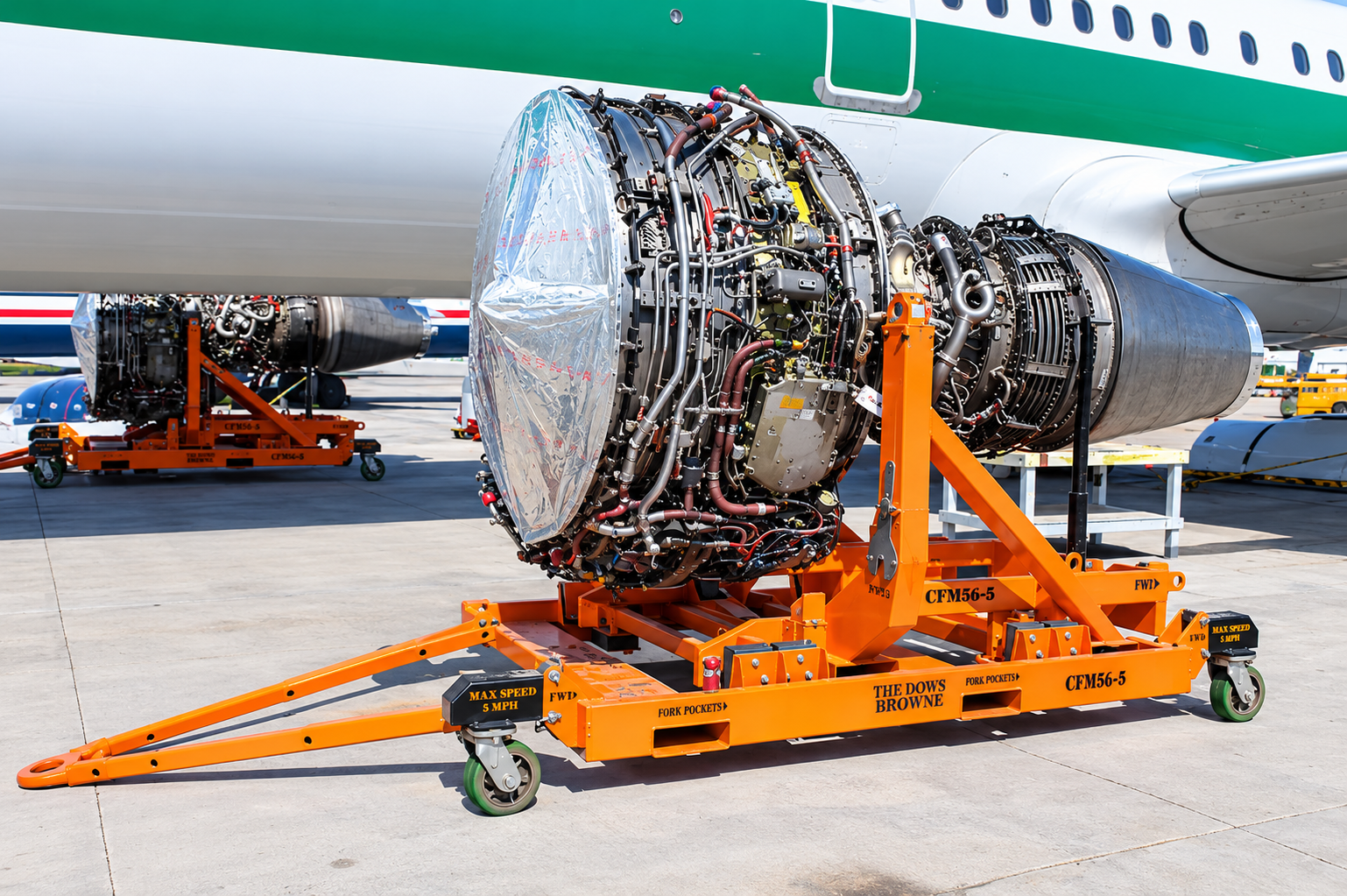

Handles the CFM56-5,A B&C Series engines

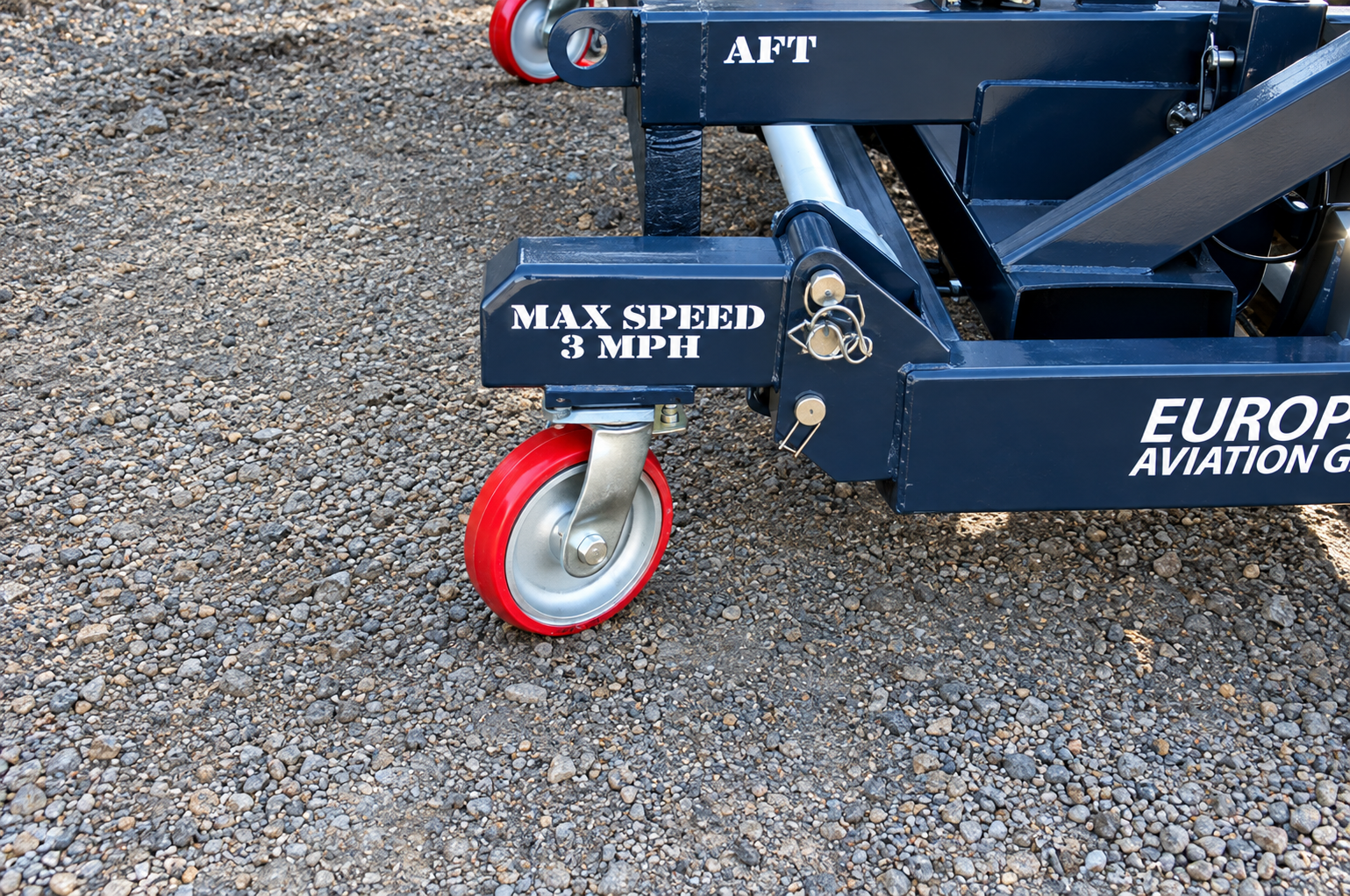

• Retractable casters included, polyurethane, 5000 pound rated each, full swivel.
• Lightweight
• configuration.
• Equipped to accept tow bars at any time, tow bars can be ordered with stand.
• Equipped with proper isolation blocks, rubber compound, TUNED TO 7 10 Hz.
• Transportation tie-downs.
• Designed to fit through a narrow body cargo door while equipped with an engine (casters in the upright position).
• Mounts and adapters included making the stand “bootstrap ready”.
• Economically priced.
• Built to CFMI specification 9970-957-889 , and KXT 4854.
• Dupont skydrol resistant Imron primer and top coat > Schedule 8 or greater stainless and anodized

Dimensions:

• Length: 129 in.
• Width: 95.5 in.
• Height: 58 in.
