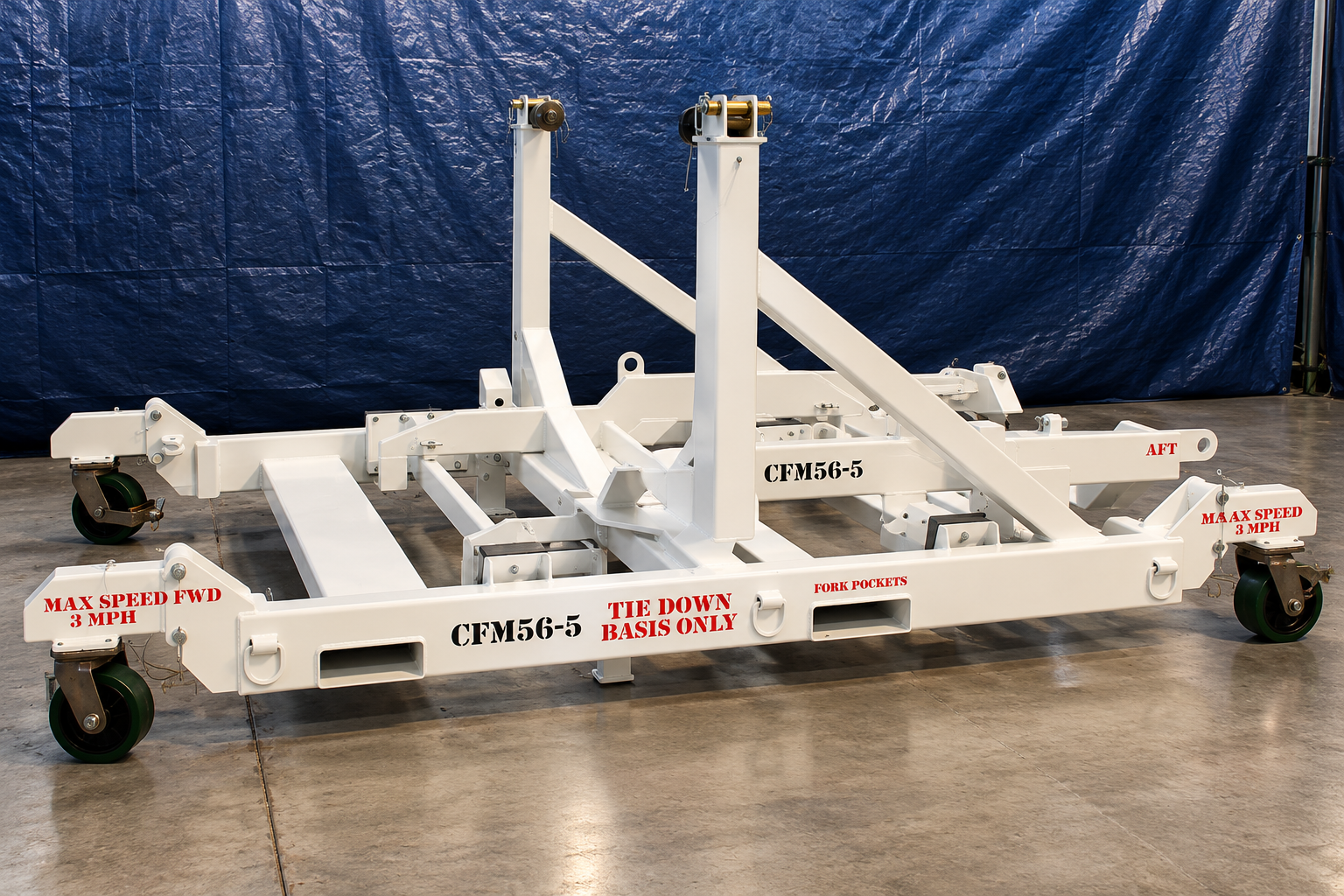

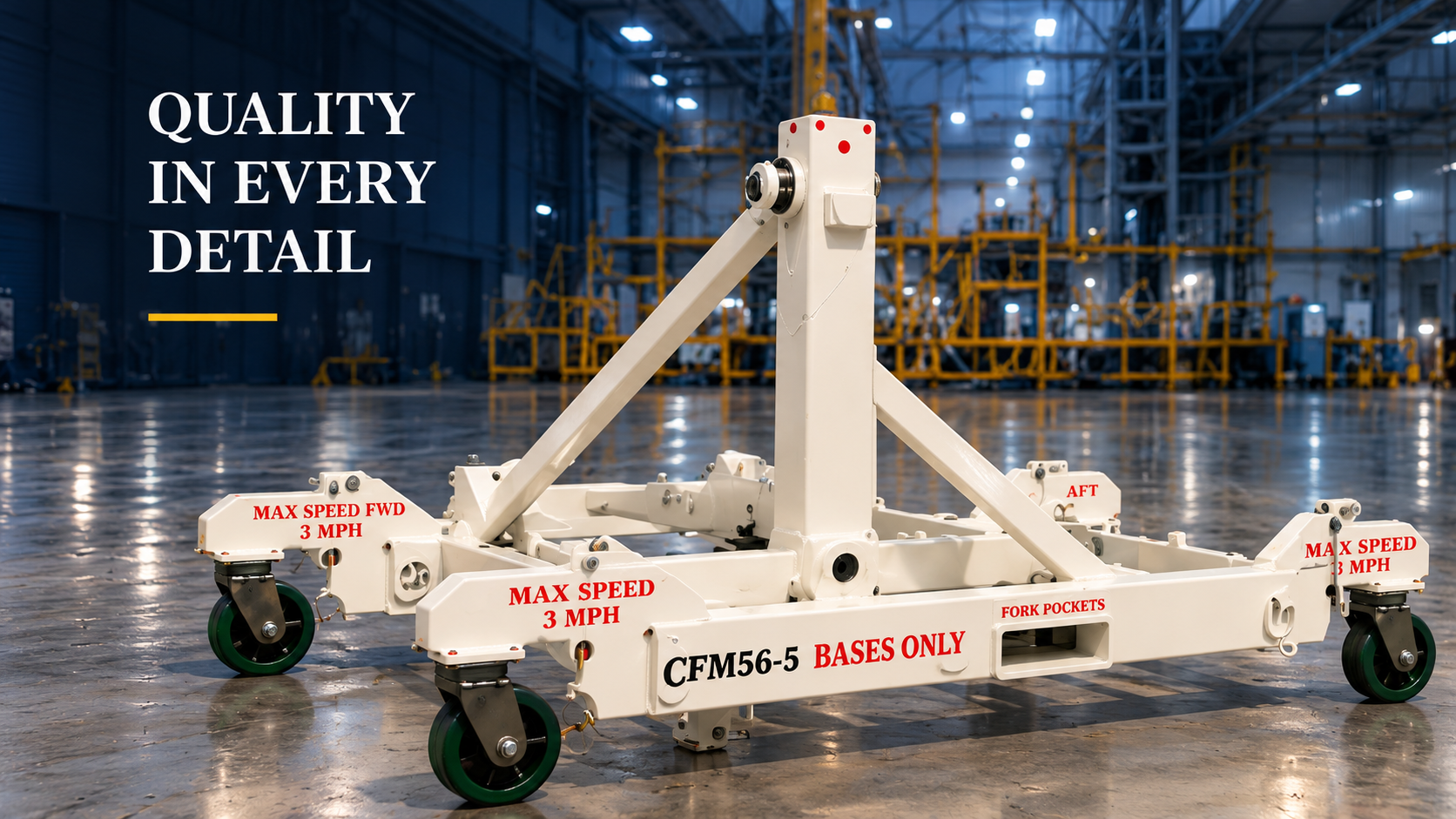

The ABSCO CFM56-5 AB&C Engine Stand is designed specifically for transportation, ground handling, and bootstrapping the CFM56-5 engines used on Airbus 319/320/321 and Airbus 340 series aircraft.

Using state of the art engineering and design the ABSCO CFM56-5 Stand has earned a reputation as one the best designed and versatile CFM56-5 stands in the world. It has been field tested and proven to be a very durable and reliable engine transportation stand. The ABSCO CFM56-5 Engine stand Is designed to accommodate all the CFM56-5 Series engines The CFM56-5A, CFM56-5B and CFM56-5C.

 The stand is flux welded using either A500 or A36 carbon structural steel components.  All pins and related hardware are precision CNC machined using either 4130 or 17-4 stainless steel or 7075-T6 aluminum.  All stands are painted using epoxy based paint per customer requirements. Customized colors are available at no extra charge.

 Each stand is load tested per customer requirements utilizing NIST certified gauges to assure each stand meets quality standards prior to shipment.  Additionally, dye penetrant or mag particle inspections are performed prior to and following load testing.

This ABSCO stand has been extensively and successfully used worldwide by a lot of Operators .The stands are Brand new with a Full 3 Year Warranty.

Handles the CFM56-5,A B&C Series engines
> Retractable casters included, polyurethane, 5000 pound rated each, full swivel
>  Lightweight configuration
>  Equipped to accept tow bars at any time, tow bars can be ordered with stand
>  Equipped with proper isolation blocks, rubber compound, TUNED TO 7 10 Hz
> Transportation tie-downs
> Designed to fit through a narrow body cargo door while equipped with an engine (casters in the upright position)
> Mounts and adapters included making the stand "bootstrap ready"
>  Economically priced
> Built to CFMI specification 9970-957-889 , and KXT 4854
> Dupont skydrol resistant Imron primer and top coat > Schedule 8 or greater stainless and anodized

Dimensions:
> Length: 129 in.
> Width: 95.5 in.
> Height: 58

Total Weight 4,450 lbs. (approx)
Please contact our sales department for pricing and availability.
